Wednesday, November 18, 2015

Starting to Strip

Milling the strips went routinely, except that I'd almost forgotten how "physical" and dusty the job is. Again, I ended up with strips 3/16" thick, and decided on a 5/8" width this time. I hope that the smaller strips will be easier to twist into place.
I built the "cross trees" and "outriggers" the same way as the last time, except that I bolted the short boards into the platform, and left the long boards loose.

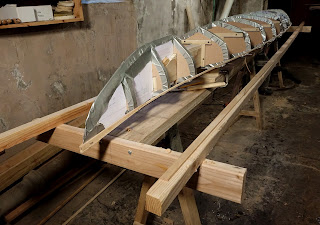

The first little cheater strips are in place. I finally figured  out to make the second ones shorter than the first, reducing the number of cheaters needed.

Friday, November 6, 2015

Strongback

After doing it both ways, and realizing the ups and downs of each, I have to conclude that its generally easier to get things aligned when using an Internal Strongback-especially the bow & stern sections.
I had to do a little pulling & tweaking on the spine in order to get the centerline on the forms to line up to the string, but it seems to have come out well. I adjusted the bow & stern sections using shims, and held them in place with glue blocks.
